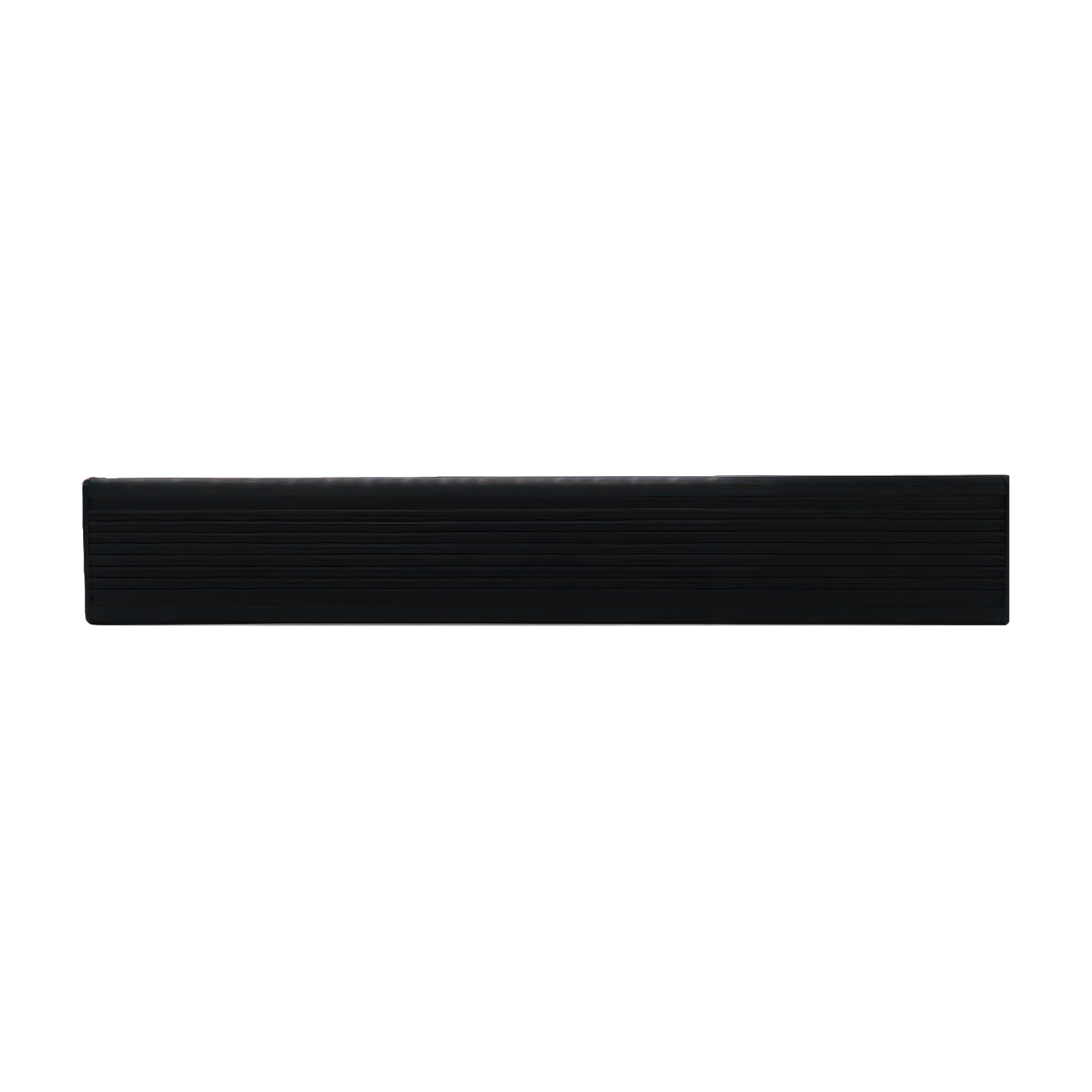

Kimera Pro 4.0 (Slim Version): PC industriale fanless, CPU i3 / i5 / i7, Thunderbolt, Seriale RS-232

  • Aluminium fanless design
  • Dual video out HDMI
  • 1x Serial Port (Optional)
  • 2x Thunderbolt
  • Intel Core i3, i5, i7 (13° Gen.)
Cod: PRC-13

Additional information

CPU

Intel® Core™ i3-1315U (10M Cache, up to 4,50 GHz), Intel® Core™ i5-1340P (12M Cache, up to 4,60 GHz), Intel® Core™ i7-1360P (18M Cache, up to 5,00 GHz)

RAM

2 x DDR4 SO-DIMM up to 64 GB, 3200 MHz, dual channel

Storage

1x SSD / HDD 2,5" Sata, 2x M.2 NVMe PCIe SSD (NVMe RAID Support)

LAN

Intel® i225-LM 2.5 Gbps Ethernet

Wifi

Optional

Graphics

CPU i3: Integrated Intel® UHD Graphics, CPU i5/i7: Intel® Graphics Iris Xe

Connettori Esterni

Front: 2x USB 3.0 2x USB 2.0 1x Jack Audio Rear 2x HDMI 2.0 1x USB 2.0 1x USB 3.0 1x 2.5 GbE LAN 2x Thunderbolt 4

Potenza

19V 120W DC-In

Dimensioni

247 x 240 x 38,5 mm

Hai bisogno di una configurazione personalizzata?​

Fatti aiutare dai nostri Tecnici

Documentazione Tecnica

Datasheet
Download
Manuale
Download

Richiedi Informazioni
