Kimera Pro 4.0 (Box Version): industrial fanless PC, CPU i3 / i5 / i7, Thunderbolt

  • Aluminium fanless design
  • Quad video out (2x HDMI + 2x Type C)
  • 1 x conector Audio
  • 2 x Thunderbolt
  • Intel Core i3, i5, i7 (13° Gen.)
Cod: PRC-13
  • VIDEO PRODUCT
Request Info

Additional information

CPU

Intel® Core™ i3-1315U (10M Cache, up to 4,50 GHz)
Intel® Core™ i5-1340P (12M Cache, up to 4,60 GHz)
Intel® Core™ i7-1360P (18M Cache, up to 5,00 GHz)
RAM

2 x DDR4 SO-DIMM up to 64 GB, 3200 MHz, dual channel
Storage

1x SSD/HDD 2,5" Sata, 1x M.2 NVMe PCIe, 1x M.2 Sata
LAN

Intel® i225-LM 2.5 Gbps Ethernet
Wifi

Optional
Graphics

CPU i3: Integrated Intel® UHD Graphics, CPU i5/i7: Intel® Graphics Iris Xe
External Connectors

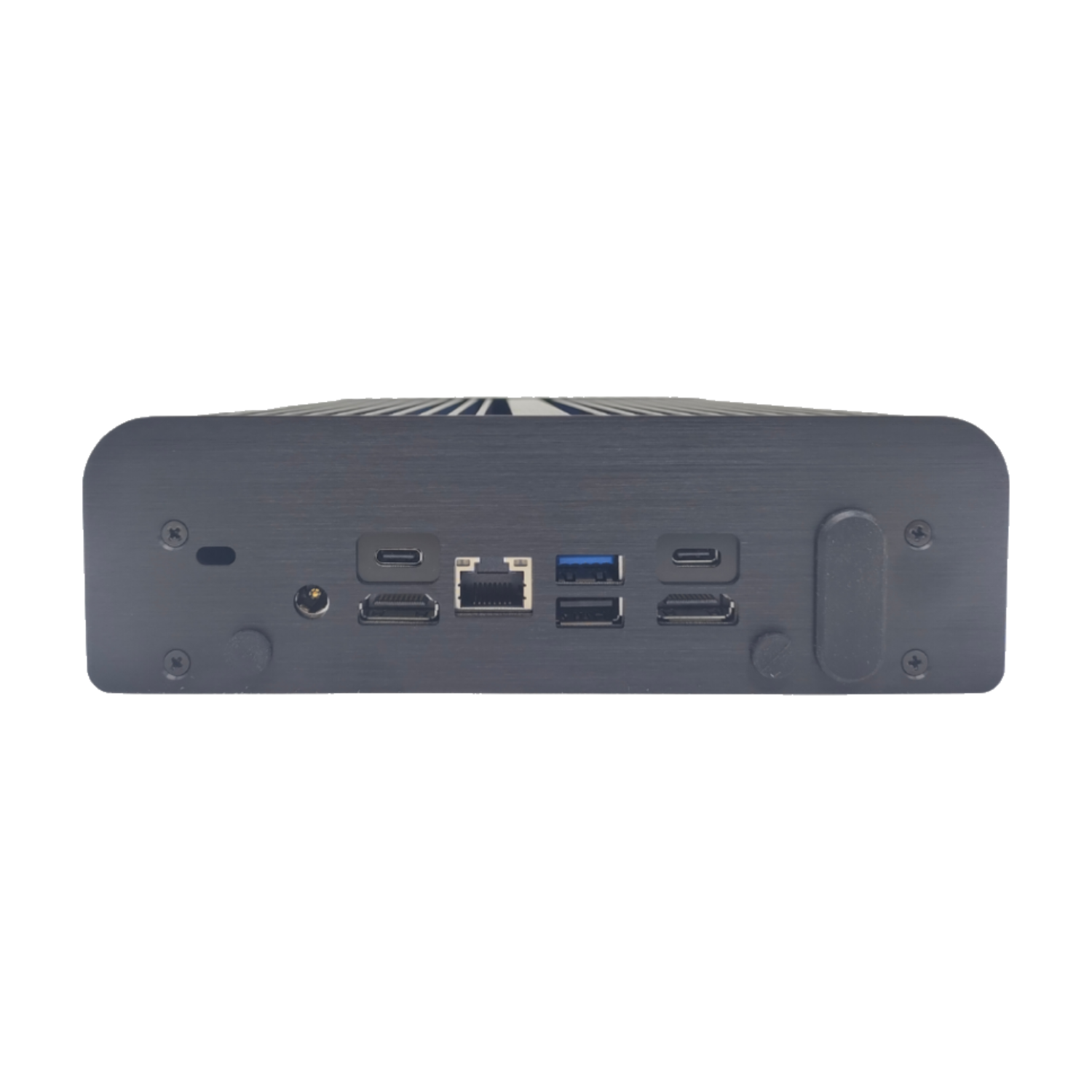

Front: 2x USB 3.0 2x USB 2.0 1x Jack Audio Rear 2x HDMI 2.0 1x USB 2.0 1x USB 3.0 1x 2.5 GbE LAN 2x Thunderbolt 4
Power

19V 120W DC-In
Dimensions

176,6 x 200 x 53,6 mm

Technical documentation

Datasheet
Download
Instruction Manual
Download
